Our Products

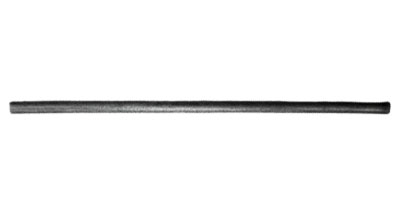

Oxygen Lancing Pipe And Lancing Tubes

8mm Normal Bore Mild Steel Lancing Tubes as per IS - 10577/82

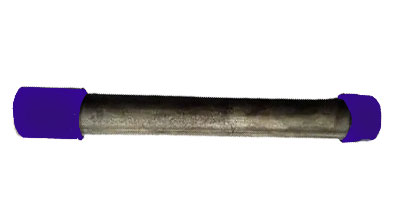

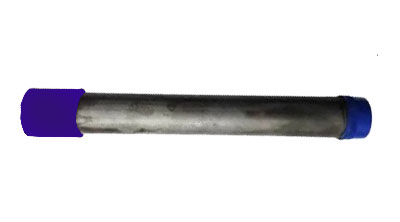

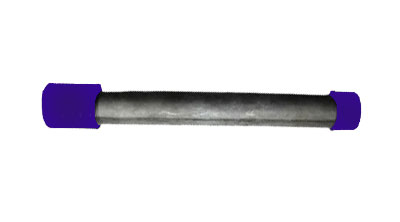

Both sides threaded and one side socketed; other side protected with a plastic cap. Length - 3m to 12m as desired by the customer

10mm Normal Bore Mild Steel Lancing Tubes as per IS - 10577/82

Both sides threaded and one side socketed; other side protected with a plastic cap. Length - 3m to 12m as desired by the customer

15mm Normal Bore Mild Steel Lancing Tubes as per IS - 10577/82

Both sides threaded and one side socketed; other side protected with a plastic cap. Length - 3m to 12m as desired by the customer.

20mm Normal Bore Mild Steel Lancing Tubes as per IS - 10577/82

Both sides threaded and one side socketed; other side protected with a plastic cap. Length - 3m to 12m as desired by the customer.

25mm Normal Bore Mild Steel Lancing Tubes as per IS - 10577/82

Both sides threaded and one side socketed; other side protected with a plastic cap. Length - 3m to 12m as desired by the customer.

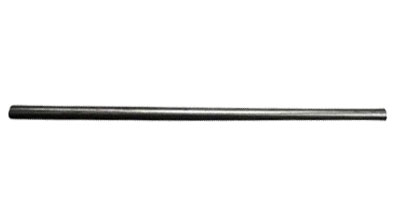

4mm ID & 6mm OD lancing Tubes for Concast Nozzle

Both sides are plane and used for Nozzle Cleaning.

Both sides are plane and used for Nozzle Cleaning.

Both sides are plane and used for Nozzle Cleaning.

MILD STEEL TUBES

For Oxygen Lancing Purposes Conforming to IS-10577/82

Pipes are manufactured by high frequency induction welding process in a state of art automatic Tube Mill

 N.B.
  Outside Diameter
 Wall Thickness
  Weight of Black Pipe
Plain End
 Screwed & Socketed
mm
 MIN(mm)
 MAX(mm) mm
 Kg/M
 Kg/M
8(L)
 13.2 13.6 1.8 0.517 0.521
8(M) 13.2 14.0 2.35 0.650 0.654
8(H) 13.2 14.0 2.9 0.769 0.773
10(L) 16.7 17.1 1.8 0.674 0.680
10(M) 16.7 17.5 2.35 0.852 0.858
10(H) 16.7 17.5 2.9 1.02 1.03
15(L) 21.0 21.4 2.0 0.952 0.961
15(M) 21.0 21.8 2.65 1.22 1.23
15(H) 21.0 21.8 3.25 1.45 1.46
20(L) 26.4 26.9 2.35 1.41 1.42
20(M) 26.5 27.3 2.65 1.58 1.59
20(H) 26.5 27.3 3.25 1.90 1.91
25(L) 33.2 33.8 2.65 2.01 2.03
25(M) 33.3 34.2 3.25 2.44 2.46
25(H) 33.3 34.2 4.05 2.97 2.99
32(L) 41.9.0 42.5 2.60 2.54 2.57
32(M) 42.0 42.9 3.20 3.10 3.13
32(H) 42.0 42.9 4.00 3.79 3.82
40(L) 47.8 48.4 2.90 3.23 3.27
40(M) 47.9 48.8 3.20 3.56 3.60
40(H) 47.9 48.8 4.00 4.37 4.41

We can also supply 6mm outside Diameter and 4mm inside Diameter Mild Steel Tubes used for lancing the nozzles in continuous casting plants. (Plain Ends length 4 to 5 meters)

TOLERANCE
Thickness Weight Length
Light Tubes
+ not limited
-8%
Medium and Heavy Tubes
+ not limited
-10%
Single Tubes(Light Series)
+10%
-8%
Single Tubes(Medium and Heavy Series) (+-) 10%

Unless oterwise specified 7.1 meter

Posssible length 3 to 12 Meters

Until otherwise specified the pipes are threaded at both ends and socketed at one end and the other side is protected with a plastic cap

Special sea worthy Packaging for Export

  • Each Pipe is coated with antirust paint/varnish
  • Master bundles are warped in HDPE sheets
Indian Standard (IS) Equlvalant B.S Typical End User
IS 10577/82 BS-1387 Oxygen Lancing Water / Gas lines may be used for structured purpose only
