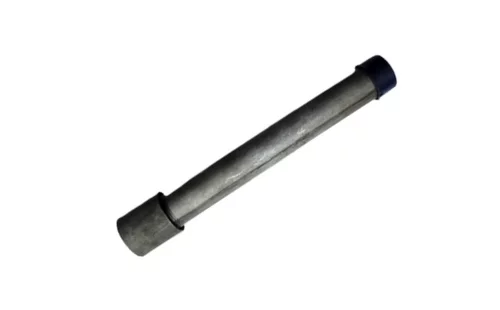

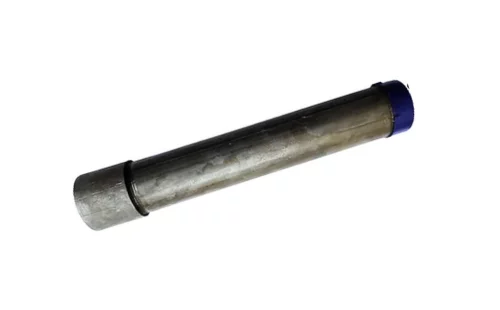

8mm NB MS Lancing Tubes as per IS - 10577/82

The pipe is threaded on both ends with one end featuring a socket and protective plastic cap, while its length can be customized according to the customer's preferences, ranging from 3 meters to 12 meters

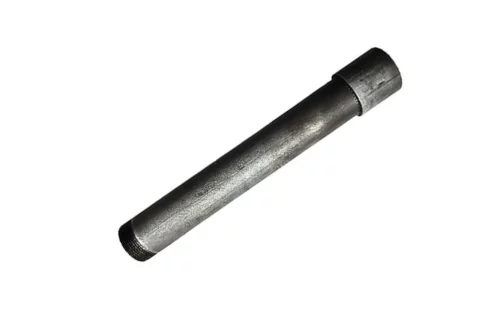

10mm NB MS Lancing Tubes as per IS - 10577/82

The pipe or tubing can be customized to the customer's desired length, ranging from 3 meters to 12 meters, and features threads on both ends, a socket on one end, and a protective plastic cap on the other

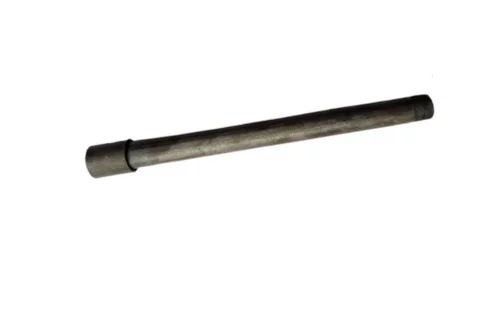

15mm NB MS Lancing Tubes as per IS - 10577/82

Client can specify their desired length, ranging from 3 meters to 12 meters, for this pipe or tubing, which is threaded at both ends, socketed on one side, and protected with a plastic cap on the opposite end

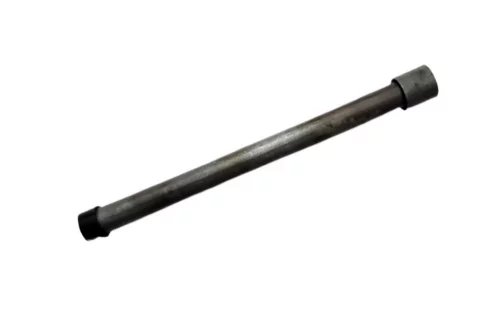

20mm NB MS Lancing Tubes as per IS - 10577/82

The customer can choose any length between 3 meters to 12 meters for this pipe or tubing, which is threaded at both ends, features a socket on one side, and has protective plastic cap on the other end

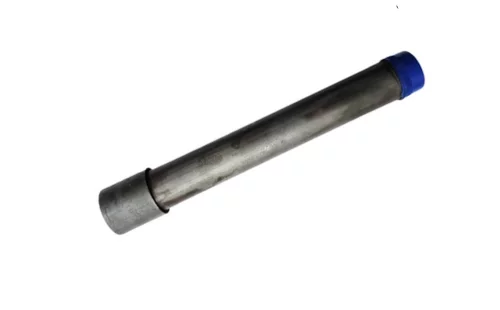

25mm NB MS Lancing Tubes as per IS - 10577/82

Featuring threaded ends on both sides, a socket on one end, and safeguarded with a plastic cap on the other, this pipe or tubing can be customized to lengths between 3 meters and 12 meters, according to the customer's preferences

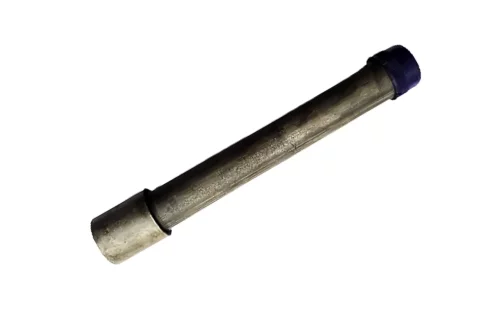

32mm NB MS Lancing Tubes as per IS - 10577/82

Customers have the option to specify their desired length, ranging from 3 meters to 12 meters, for this pipe or tubing. It features threads on both ends, a socket on one end, and is protected with a plastic cap on the other side.

40mm NB MS Lancing Tubes as per IS - 10577/82

Customizable in length from 3 meters to 12 meters, this pipe or tubing comes with threads on both ends, a socket on one side, can be customized

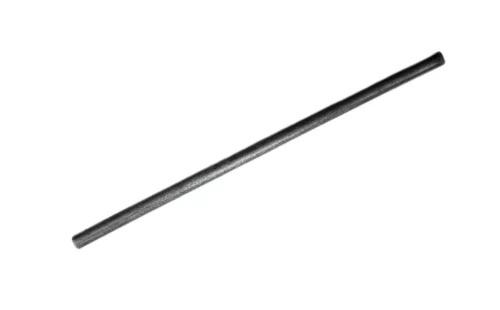

4mm ID & 6mm OD lancing tubes for for concast nozzle

This 5-meter-long pipe is designed with flat and smooth surfaces on both sides, making it ideal for nozzle cleaning applications

6mm ID & 8mm OD lancing tubes for for concast nozzle

This 5-meter pipe possesses flat surfaces on both ends, optimizing its performance in applications requiring thorough cleaning

MILD STEEL TUBES

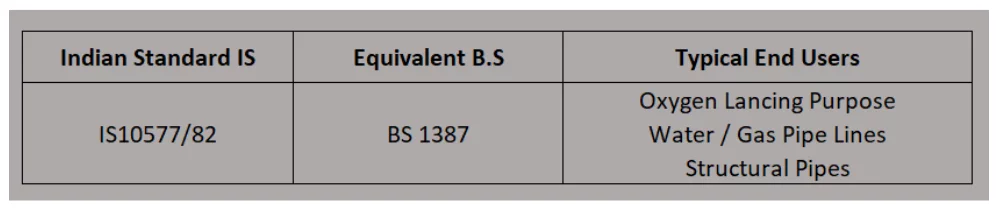

For Oxygen Lancing Purposes Conforming to IS-10577/82 Pipes are manufactured by high frequency induction welding process in a state-of-the-art automatic Tube Mill

N.B.	Outside Diameter		Wall Thickness	Weight of Black Pipe
N.B.	Outside Diameter		Wall Thickness			Plain End	Screwed & Socketed
mm	MIN(mm)	MAX(mm)	mm	Kg/M	Kg/M
8(L)	13.2	13.6	1.8	0.517	0.521
8(M)	13.2	14.0	2.35	0.650	0.654
8(H)	13.2	14.0	2.9	0.769	0.773
10(L)	16.7	17.1	1.8	0.674	0.680
10(M)	16.7	17.5	2.35	0.852	0.858
10(H)	16.7	17.5	2.9	1.02	1.03
15(L)	21.0	21.4	2.0	0.952	0.961
15(M)	21.0	21.8	2.65	1.22	1.23
15(H)	21.0	21.8	3.25	1.45	1.46
20(L)	26.4	26.9	2.35	1.41	1.42
20(M)	26.5	27.3	2.65	1.58	1.59
20(H)	26.5	27.3	3.25	1.90	1.91
25(L)	33.2	33.8	2.65	2.01	2.03
25(M)	33.3	34.2	3.25	2.44	2.46
25(H)	33.3	34.2	4.05	2.97	2.99
32(L)	41.9.0	42.5	2.60	2.54	2.57
32(M)	42.0	42.9	3.20	3.10	3.13
32(H)	42.0	42.9	4.00	3.79	3.82
40(L)	47.8	48.4	2.90	3.23	3.27
40(M)	47.9	48.8	3.20	3.56	3.60
40(H)	47.9	48.8	4.00	4.37	4.41
